Welding specialist

Fabrication & Assembly

Where innovation meets the floor. Our Fabrication and Assembly department is dedicated to efficiency, durability, and detail. Whether it's a custom prototype or a large-scale production run, we leverage cutting-edge technology and a skilled workforce to deliver superior results on time, every time

Our Lineup

Yaskawa ArcWorld Robotic Welding Cell

Our Yaskawa Motoman ArcWorld® robotic welding cell features dual Lincoln Electric Power Wave® R450 welders and a ferris wheel positioner, designed for continuous, high-volume production runs.

Blaze™ Cobot Welding Cell

Our Blaze™ cobot welding station is specifically setup with a highly advanced  7-axis collaborative robot (cobot), which offers more flexibility and reach than standard 6-axis industrial robots.

FANUC ARC Mate Welding Cell

Our FANUC ARC Mate® series robotic welding cell uses a Lincoln Electric AutoDrive® 4R220 wire feeding system, which is a top-tier industrial setup for high-speed, high-precision manufacturing.

Yaskawa ArcWorld® Robotic Welding Cell

Our fabrication department features a fully integrated Yaskawa Motoman ArcWorld® robotic welding cell. Designed as a turnkey, high-efficiency industrial workstation, this system combines high-speed robotics with advanced Lincoln Electric welding power to deliver maximum throughput and repeatable weld precision for mid-to-large production runs.

​

Core Specifications & Features

  • Motoman® 6-Axis Robots: Driven by high-speed Yaskawa Motoman arc-welding robots engineered specifically for precise torch positioning, reaching difficult weld angles, and maintaining consistent torch velocity across complex geometries.

  • Dual Lincoln Electric Power Wave® R450 Welders: Powered by two industrial Lincoln Electric Power Wave® R450 power sources. Rated at 450 A at 100% duty cycle (max output range 5–550 A) to maintain continuous high-volume production.

  • Dual-Zone Positioner: Features an integrated Ferris wheel positioner. This allows operators to safely load or unload parts on one side while the robot is actively welding on the other, virtually eliminating machine downtime.

FANUC ARC Mate® Robotic Welding Cell

Our fully enclosed FANUC ARC Mate robotic welding cell. Designed for heavy-duty industrial applications, this system combines world-class robotics with industry-leading Lincoln Electric welding technology to deliver consistent, X-ray quality welds every time.

​

Core Specifications & Features

  • FANUC ARC Mate Robot: A 6-axis high-speed robot known for its extreme rigidity and a repeatability of ±0.02 mm. It can maneuver into tight jigs and perform complex circular or linear welds with surgical precision.

  • Dual-Zone Productivity: The integrated Side-A/Side-B turntable system allows for continuous production. An operator can safely load or unload parts on one side while the robot is actively welding on the other, virtually eliminating machine downtime.

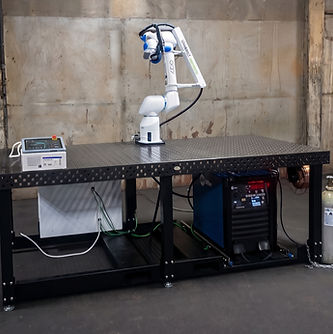

Advanced 7-Axis Blaze Cobot Welding Cell

Our fabrication department is also equipped with the Blaze™ Cobot Welding System, a state-of-the-art solution designed for high-precision, repeatable welding. Unlike traditional robots, this 7-axis system mimics the human arm's maneuverability, allowing it to reach around complex fixtures and weld in tight spaces that others can't.

​

Core Specifications & Features

  • 7-Axis Maneuverability: Provides an extra "elbow" joint for unmatched torch positioning and the ability to weld complex geometries without re-fixturing.

  • "No-Programming" Teaching: Our team uses Teach-by-Touch technology. By physically moving the arm to the weld points, we can set up new jobs in minutes, making it perfect for both high-volume runs and short-run custom projects.

  • High Precision: Offers a repeatability of ±0.1 mm (0.004”), ensuring every single part is identical and meets strict structural tolerances.
